Light Source: 500W Laser Source
Lifetime: 12,000 h
Color Rendering: Ra > 70

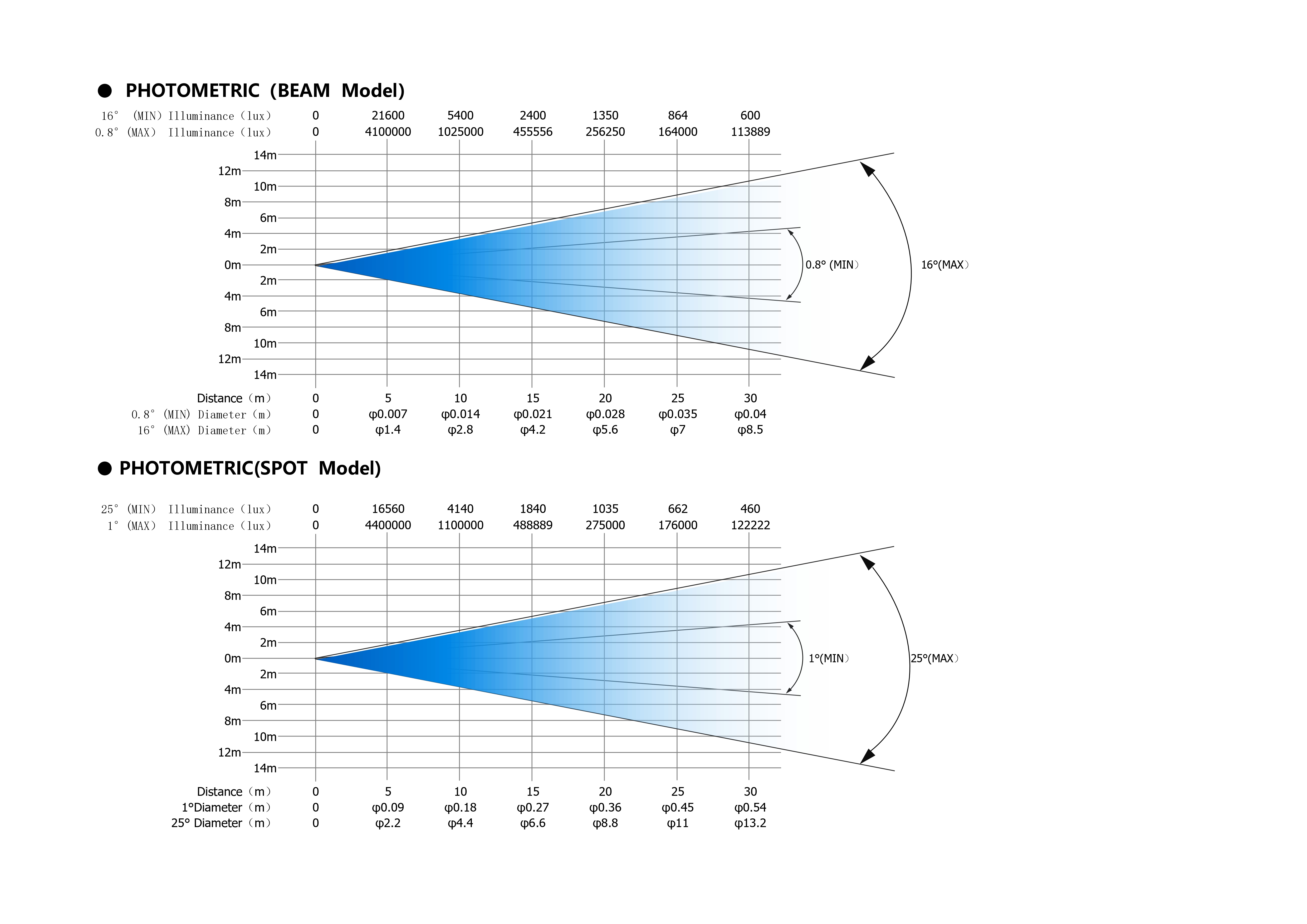

Beam: 0.8°-16°
Spot: 1°-25°
Light Source: 500W Laser Source
Lifetime: 12,000 h
Color Rendering: Ra > 70
Beam: 0.8°-16°
Spot: 1°-25°
CMY infinite color mixing

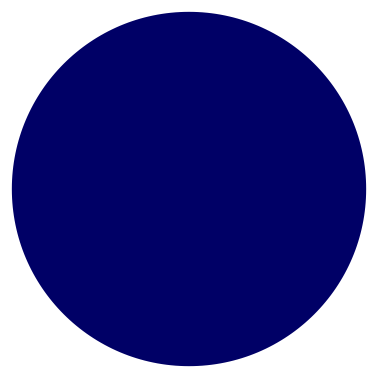

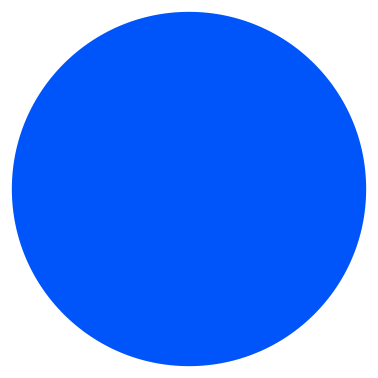

1 independent color wheel: 17 colors + white; supports stepped/linear color change and adjustable-speed rainbow effect
CMY infinite color mixing
1 independent color wheel: 17 colors + white; supports stepped/linear color change and adjustable-speed rainbow effect

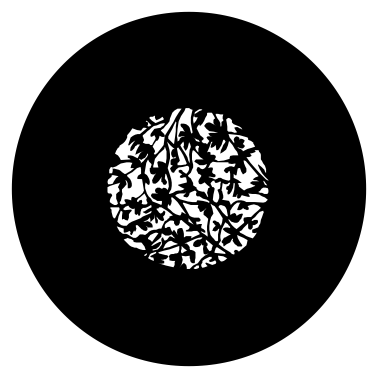

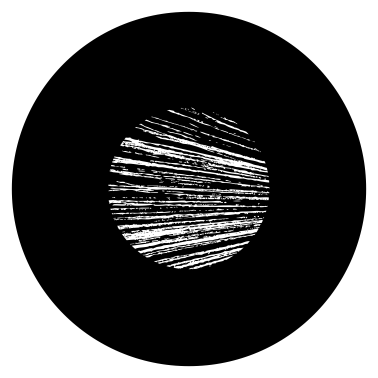

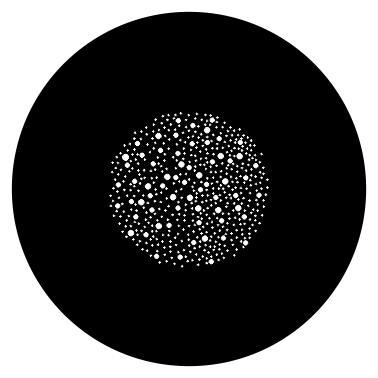

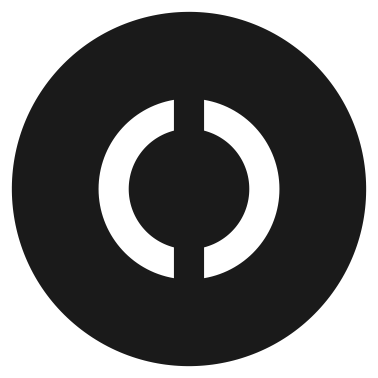

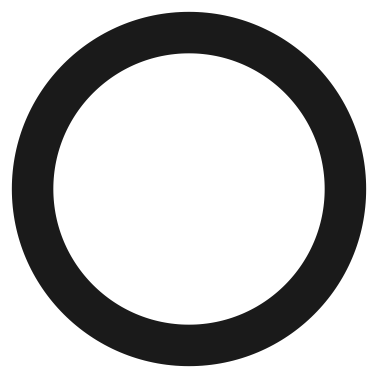

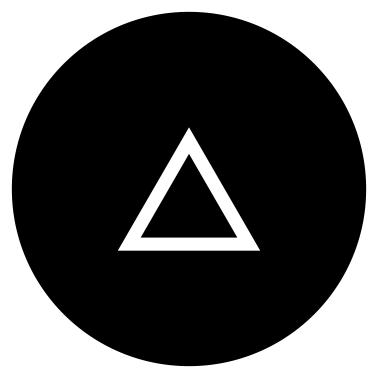

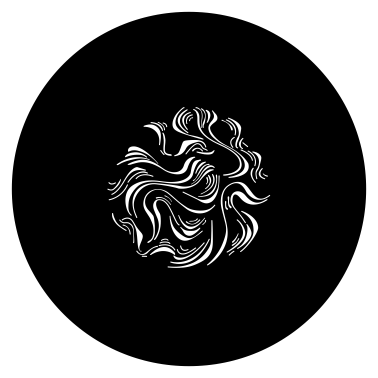

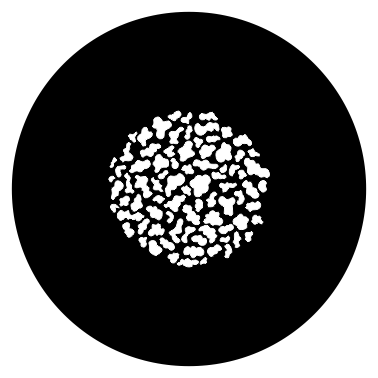

1 rotating pattern wheel, with 11 interchangeable pattern gobos + white; supports chase, shake, rotation, and indexable positioning; gobo diameter: Φ9.5 mm, pattern diameter: Φ4.5 mm, thickness: 1.5 mm

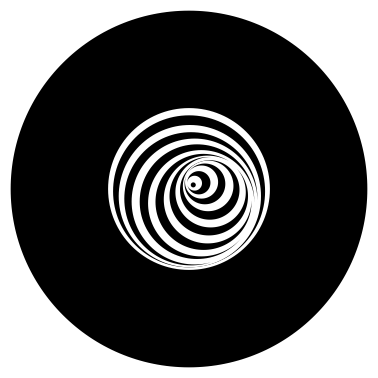

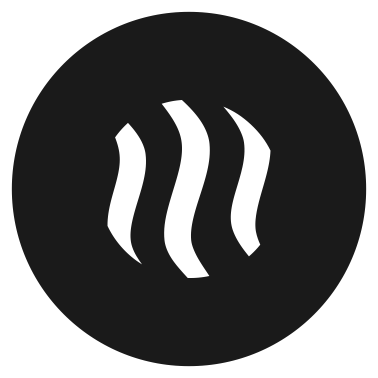

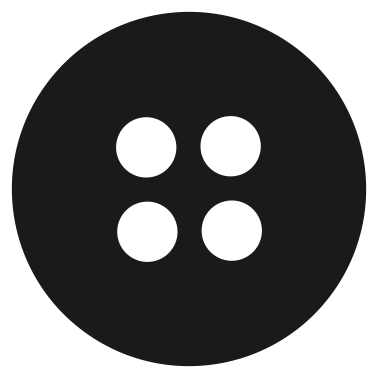

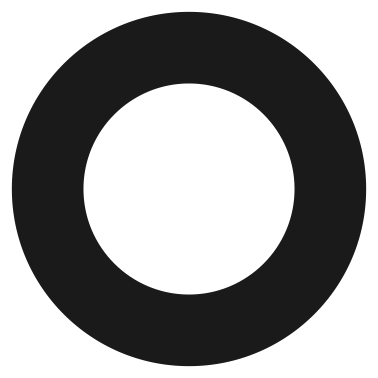

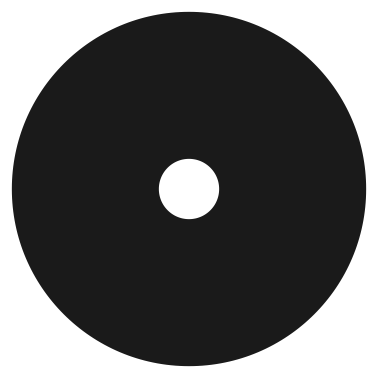

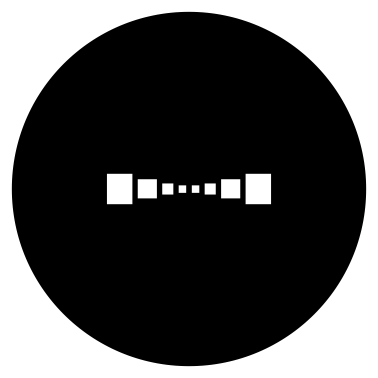

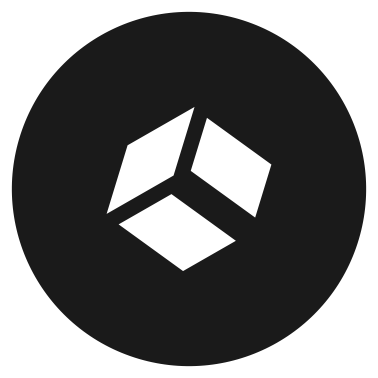

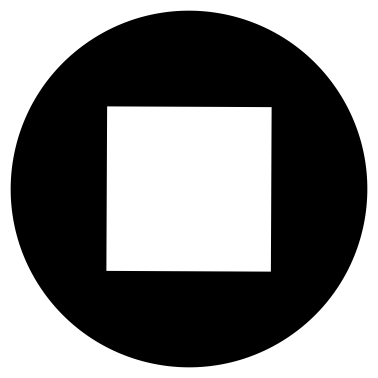

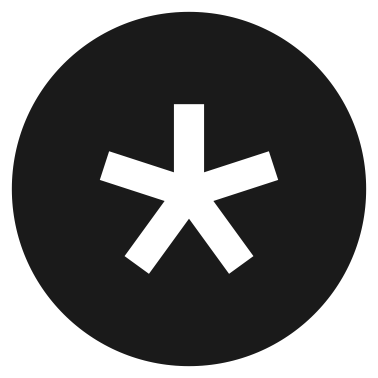

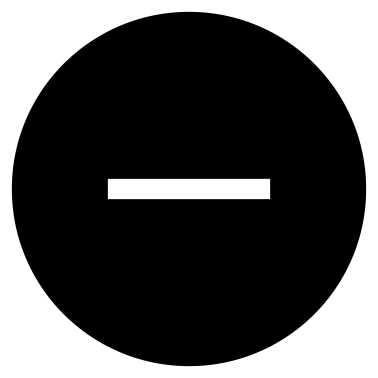

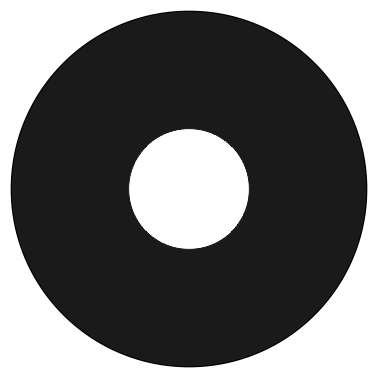

1 fixed pattern wheel, with 21 patterns + white; supports chase and shake effects
1 animation wheel that can be inserted/withdrawn, rotated continuously, and simulate dynamic effects; effects can be layered with the fixed and rotating pattern wheels
1 rotating pattern wheel, with 11 interchangeable pattern gobos + white; supports chase, shake, rotation, and indexable positioning; gobo diameter: Φ9.5 mm, pattern diameter: Φ4.5 mm, thickness: 1.5 mm
1 fixed pattern wheel, with 21 patterns + white; supports chase and shake effects
1 animation wheel that can be inserted/withdrawn, rotated continuously, and simulate dynamic effects; effects can be layered with the fixed and rotating pattern wheels
Dimming: 0–100% linear dimming
Frost: 1 independent frost filter, 0–100% frost effect
Strobe: fast strobe with multiple modes (pulse, asynchronous, synchronous, random slow/medium/fast)
Prism: 1 rotating 8-facet prism + 1 rotating 24-facet prism; overlayable and bidirectional rotation
Dimming: 0–100% linear dimming
Frost: 1 independent frost filter, 0–100% frost effect
Strobe: fast strobe with multiple modes (pulse, asynchronous, synchronous, random slow/medium/fast)
Prism: 1 rotating 8-facet prism + 1 rotating 24-facet prism; overlayable and bidirectional rotation
Pan: 540°, accuracy 2.11°/step, fine-adjust accuracy 0.008°
Tilt: 270°, accuracy 1.05°/step, fine-adjust accuracy 0.004°
Magnetic encoder positioning system for both pan and tilt
Pan: 540°, accuracy 2.11°/step, fine-adjust accuracy 0.008°
Tilt: 270°, accuracy 1.05°/step, fine-adjust accuracy 0.004°
Magnetic encoder positioning system for both pan and tilt
Control Channels: 40 (Standard) / 50 (16-bit) / 56 (Extended)
Protocols: DMX512 / RDM, Art-Net
Display: 2.8-inch B&W screen; 180°invertible text; contact-free scroll-wheel operation
Control Channels: 40 (Standard) / 50 (16-bit) / 56 (Extended)
Protocols: DMX512 / RDM, Art-Net
Display: 2.8-inch B&W screen; 180°invertible text; contact-free scroll-wheel operation
Built-in rechargeable battery for menu operation when power is off
Power-saving mode when shutter is closed
Intelligent fan control
Cooling: forced air; advanced thermal design maintains internal components within an optimal temperature range, extending lifespan and improving reliability
Electronic sensor monitoring
DMX channel level monitoring
Pan/tilt driven by three-phase motors for smooth low-speed movement and low noise
On-screen display of fixture info, lamp usage time, and fault messages
Electronic focusing
RDM bidirectional communication
Remote console control: DMX address change, lamp on/off, reset, mode switching
Software upgrade via DMX port
Input signal isolation protection
Caiyi Cloud function (optional)
Built-in rechargeable battery for menu operation when power is off
Power-saving mode when shutter is closed
Intelligent fan control
Cooling: forced air; advanced thermal design maintains internal components within an optimal temperature range, extending lifespan and improving reliability
Electronic sensor monitoring
DMX channel level monitoring
Pan/tilt driven by three-phase motors for smooth low-speed movement and low noise
On-screen display of fixture info, lamp usage time, and fault messages
Electronic focusing
RDM bidirectional communication
Remote console control: DMX address change, lamp on/off, reset, mode switching
Software upgrade via DMX port
Input signal isolation protection
Caiyi Cloud function (optional)
Input Voltage Range: AC 100–240 V, 50/60 Hz
Max. Power Consumption: 750 W
Power Factor: PF ≥ 0.98
Power Connector: PowerCON TRUE1 input
Signal In/Out: 3-pin XLR in/out
Input Voltage Range: AC 100–240 V, 50/60 Hz
Max. Power Consumption: 750 W
Power Factor: PF ≥ 0.98
Power Connector: PowerCON TRUE1 input
Signal In/Out: 3-pin XLR in/out
Temperature: -10℃~40℃
Temperature: -10℃~40℃

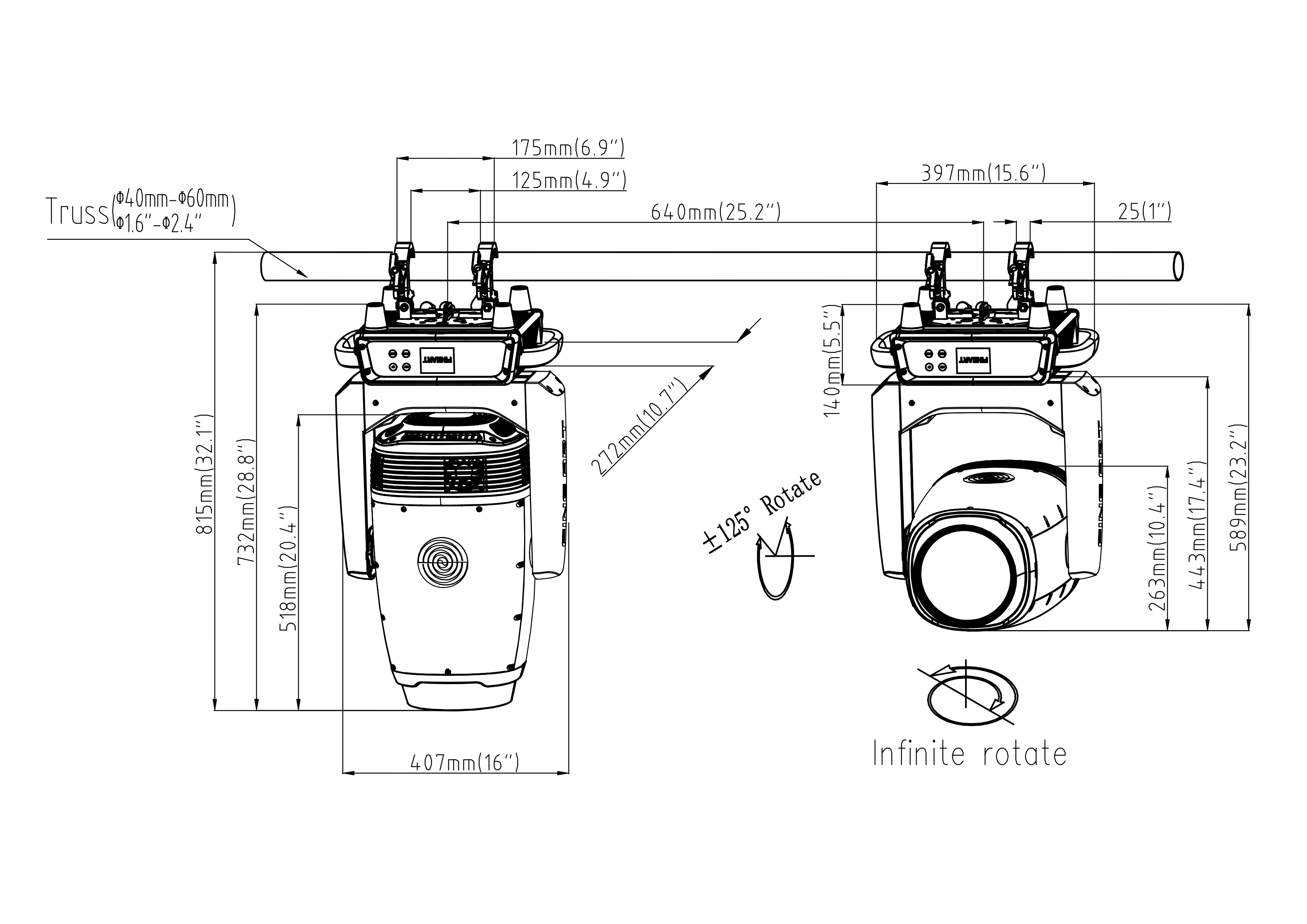

Product Dimensions:407 X 272 X 732mm
Packaging Dimensions: 845 × 527 × 950 mm
Net Weight: 38 kg
Gross Weight: 125 kg
Product Dimensions:407 X 272 X 732mm
Packaging Dimensions: 845 × 527 × 950 mm
Net Weight: 38 kg
Gross Weight: 125 kg
2 set / flight case
1 set / carton
2 set / flight case
1 set / carton

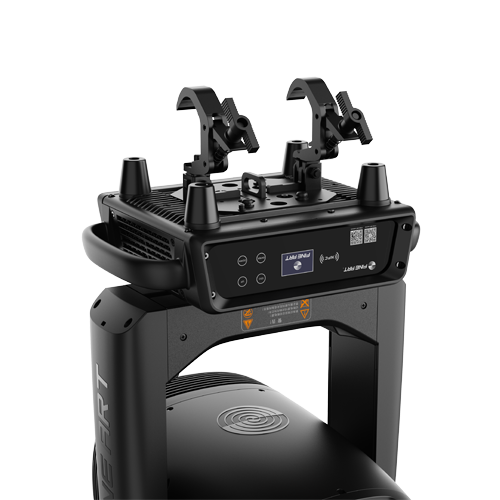

Horizontal, vertical, or side mounting
2 folding hook brackets for Φ30–Φ60 mm truss
Safety cable eyelet
Horizontal, vertical, or side mounting
2 folding hook brackets for Φ30–Φ60 mm truss
Safety cable eyelet
IP 66
IP 66

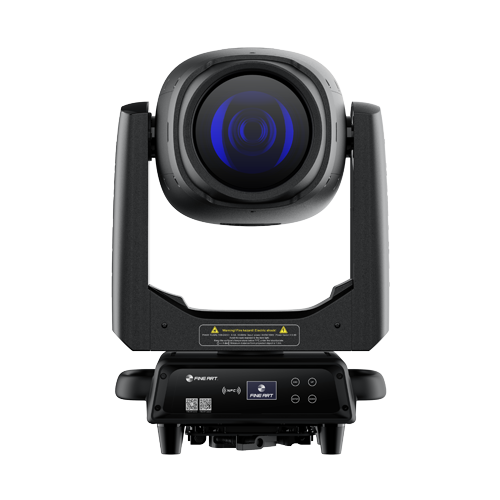

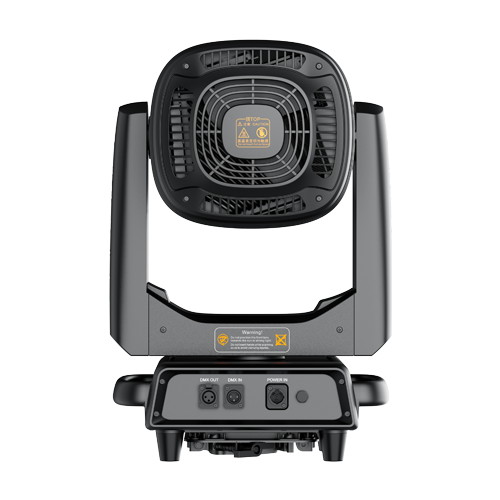

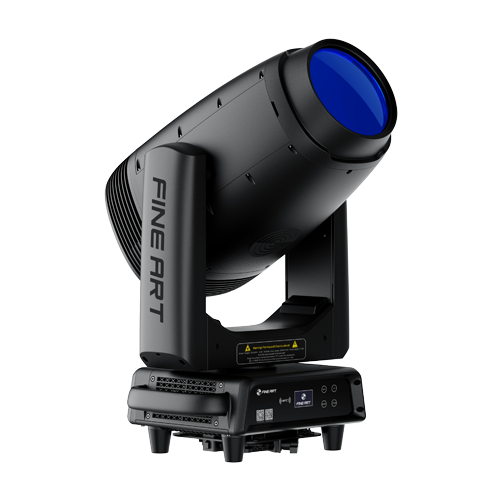

FA 500 BSW IP
