Light Source: 1600W LED white‑light module
Lifetime: 20,000 h
Color Rendering: Ra ≥ 95, R9 ≥ 95, TLCI: 95

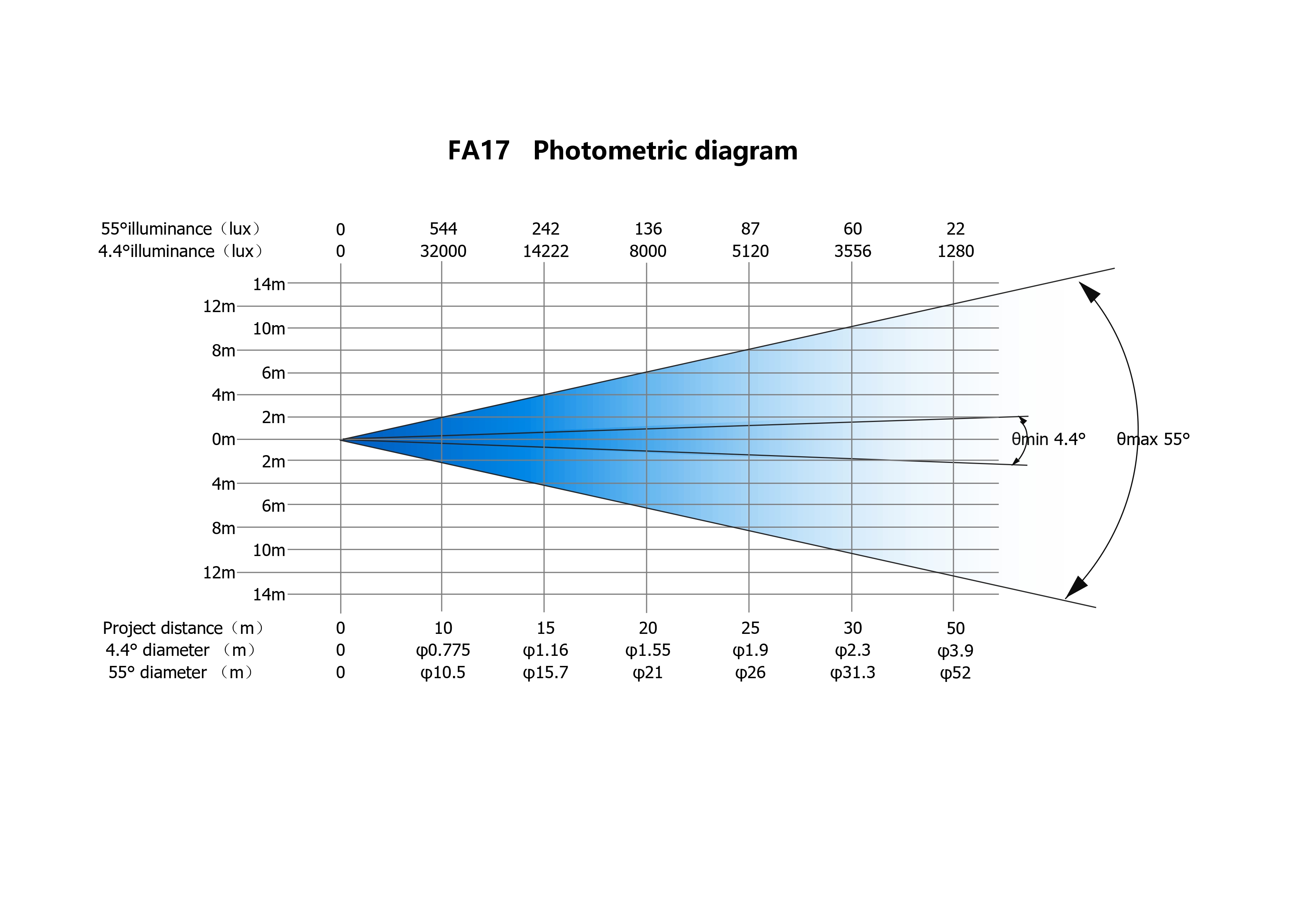

Beam Angle: 4.4°-55°
Color Temperature: 6250 K
Light Source: 1600W LED white‑light module
Lifetime: 20,000 h
Color Rendering: Ra ≥ 95, R9 ≥ 95, TLCI: 95
Beam Angle: 4.4°-55°
Color Temperature: 6250 K
CMY infinite color mixing
CTO linear adjustment（2700 K-6250 K）
2 independent color wheels: 11 colors + white; supports stepped/linear color change and adjustable-speed rainbow effect
CMY infinite color mixing
CTO linear adjustment（2700 K-6250 K）
2 independent color wheels: 11 colors + white; supports stepped/linear color change and adjustable-speed rainbow effect

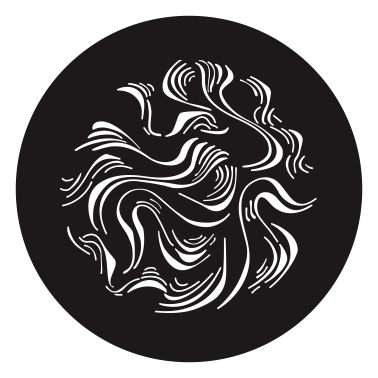

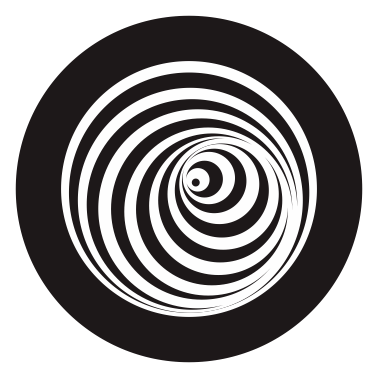

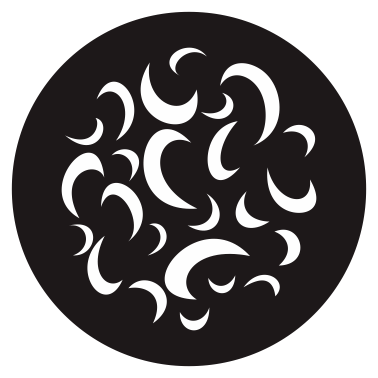

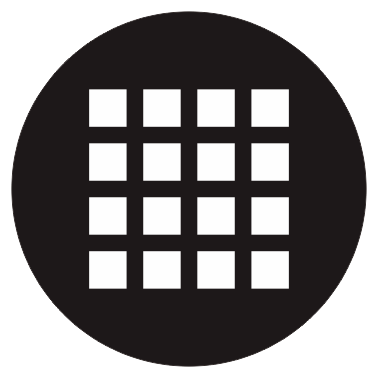

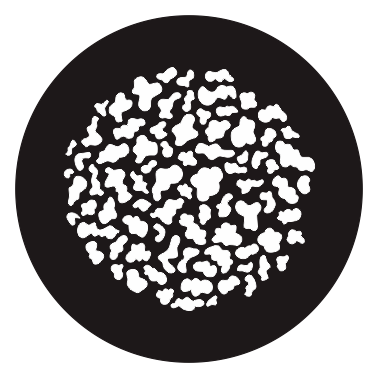

2 rotating pattern wheels, each with 6 interchangeable pattern gobos + white; supports chase, shake, rotation, and indexable positioning; gobo diameter: 32 mm, pattern diameter: 25 mm, thickness: 1.1 mm
1 full-range framing system with ±90° rotation (optional continuous-rotation framing system)
1 animation wheel that can be inserted/withdrawn, rotated continuously, and simulate dynamic effects; effects can be layered with rotating pattern wheels
2 rotating pattern wheels, each with 6 interchangeable pattern gobos + white; supports chase, shake, rotation, and indexable positioning; gobo diameter: 32 mm, pattern diameter: 25 mm, thickness: 1.1 mm
1 full-range framing system with ±90° rotation (optional continuous-rotation framing system)
1 animation wheel that can be inserted/withdrawn, rotated continuously, and simulate dynamic effects; effects can be layered with rotating pattern wheels
Dimming: 0–100% linear dimming
Frost: 2 independent frost filters, overlayable, 0–100% frost effect
Strobe: fast strobe with multiple modes (pulse, asynchronous, synchronous, random slow/medium/fast)
Prism: 1 rotating 4-facet prism + 1 rotating 4-facet gradient prism, bidirectional rotation
Fast motorized iris: 5–100% linear adjustment
Dimming: 0–100% linear dimming
Frost: 2 independent frost filters, overlayable, 0–100% frost effect
Strobe: fast strobe with multiple modes (pulse, asynchronous, synchronous, random slow/medium/fast)
Prism: 1 rotating 4-facet prism + 1 rotating 4-facet gradient prism, bidirectional rotation
Fast motorized iris: 5–100% linear adjustment
Pan: 540°, accuracy 2.11°/step, fine-adjust accuracy 0.008°
Tilt: 270°, accuracy 1.05°/step, fine-adjust accuracy 0.004°
Absolute positioning
Magnetic encoder positioning system for both pan and tilt
Pan: 540°, accuracy 2.11°/step, fine-adjust accuracy 0.008°
Tilt: 270°, accuracy 1.05°/step, fine-adjust accuracy 0.004°
Absolute positioning
Magnetic encoder positioning system for both pan and tilt
Control Channels: 35 (Standard) / 43 (16 bit) / 47 (Extended)
Protocols: DMX512 / RDM, Art-Net, wireless DMX512 (optional)
Display: 2.8-inch B&W TFT screen; 180° invertible text; contact-free scroll-wheel operation with quick-return button
Control Channels: 35 (Standard) / 43 (16 bit) / 47 (Extended)
Protocols: DMX512 / RDM, Art-Net, wireless DMX512 (optional)
Display: 2.8-inch B&W TFT screen; 180° invertible text; contact-free scroll-wheel operation with quick-return button
Built-in rechargeable battery for menu operation when power is off
Power-saving mode when shutter is closed
Intelligent fan control
Cooling: forced air(cooling); advanced thermal design keeps internal components within optimal temperature range, extending lifespan and improving reliability
Electronic sensor monitoring
DMX channel level monitoring
Pan/tilt driven by three-phase motors for smooth low-speed movement and low noise
On-screen display of fixture info, lamp usage time, and fault messages
Electronic focusing
RDM bidirectional communication
Remote console control: DMX address change, lamp on/off, reset, mode switching
Software upgrade via DMX port
Input signal isolation protection
Caiyi Cloud function (optional)
Built-in rechargeable battery for menu operation when power is off
Power-saving mode when shutter is closed
Intelligent fan control
Cooling: forced air(cooling); advanced thermal design keeps internal components within optimal temperature range, extending lifespan and improving reliability
Electronic sensor monitoring
DMX channel level monitoring
Pan/tilt driven by three-phase motors for smooth low-speed movement and low noise
On-screen display of fixture info, lamp usage time, and fault messages
Electronic focusing
RDM bidirectional communication
Remote console control: DMX address change, lamp on/off, reset, mode switching
Software upgrade via DMX port
Input signal isolation protection
Caiyi Cloud function (optional)
Input Voltage Range: AC 200-240 V, 50/60 Hz
Max. Power Consumption: 2000 W
Power Factor: PF ≥ 0.98
Power Connector: PowerCON TRUE1 input

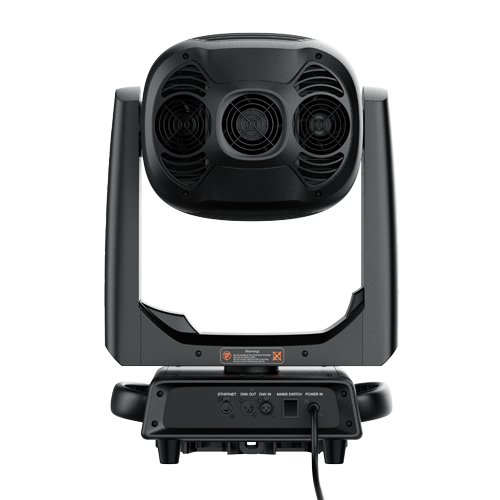

Signal In/Out: 3-pin XLR in/out, RJ45 port
Input Voltage Range: AC 200-240 V, 50/60 Hz
Max. Power Consumption: 2000 W
Power Factor: PF ≥ 0.98
Power Connector: PowerCON TRUE1 input
Signal In/Out: 3-pin XLR in/out, RJ45 port
Temperature: -10℃~40℃
Temperature: -10℃~40℃

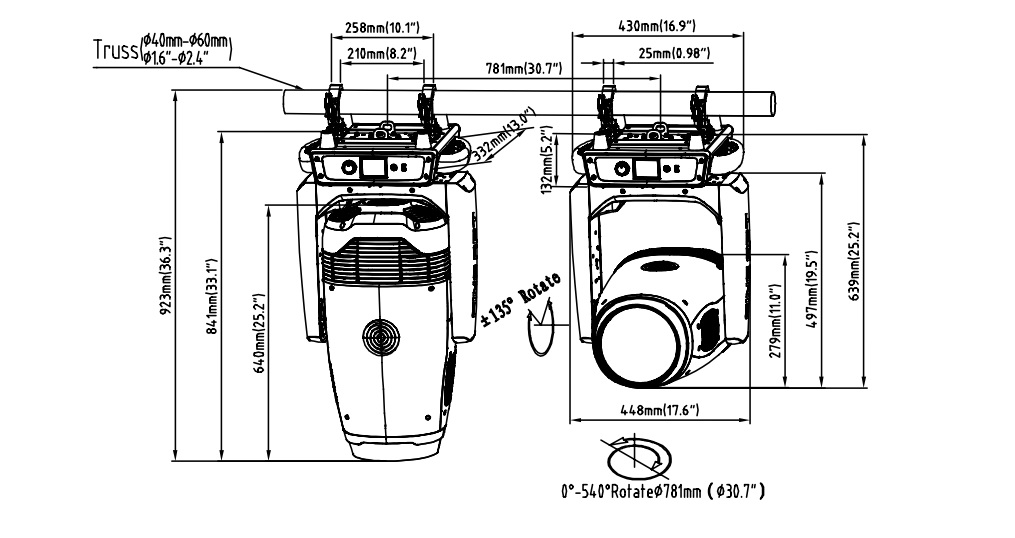

Product Dimensions: 448 × 332 × 841 mm (17.6 × 13.1 × 33.1 in)
Packaging Dimensions: 748 × 585 × 868 mm (29.4 × 23.0 × 34.2 in)
Net Weight: 50.5 kg (111.3 lbs)
Gross Weight: 91 kg (200.6 lbs)
Product Dimensions: 448 × 332 × 841 mm (17.6 × 13.1 × 33.1 in)
Packaging Dimensions: 748 × 585 × 868 mm (29.4 × 23.0 × 34.2 in)
Net Weight: 50.5 kg (111.3 lbs)
Gross Weight: 91 kg (200.6 lbs)
1 set / flight case
1 set / flight case
Horizontal or vertical mounting
2 folding hook brackets for Φ40–Φ60 mm truss (integrated)
Safety cable eyelet
Horizontal or vertical mounting
2 folding hook brackets for Φ40–Φ60 mm truss (integrated)
Safety cable eyelet
IP 20
IP 20

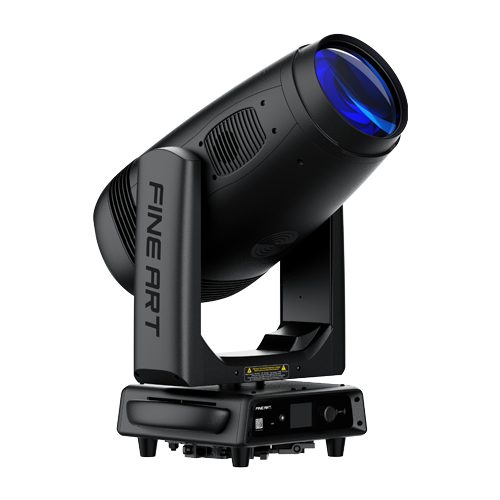

FA 17
