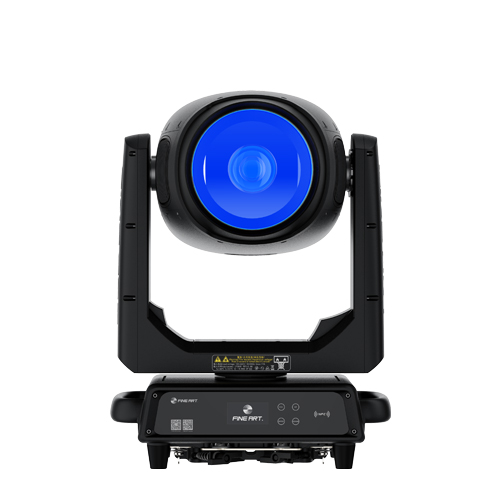

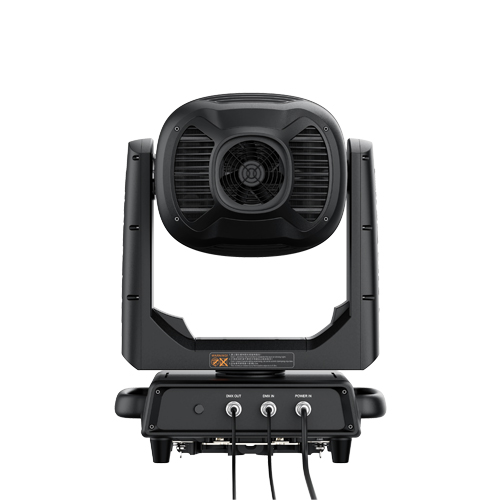

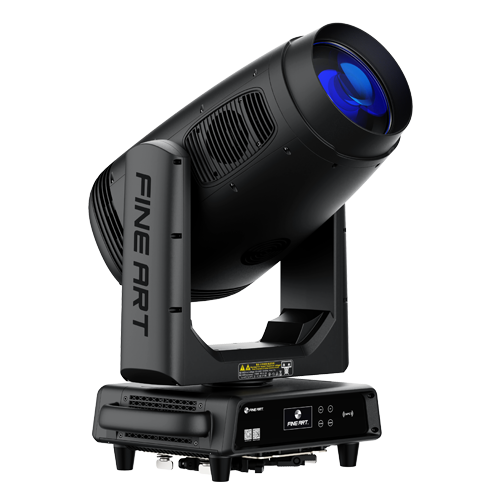

FINE 1700L WASH PERF IP
OVERVIEW
FINE 1700L WASH PERF IP is a dyeing and cutting computer moving head light equipped with the latest high-efficiency light engine, Ra≥90, and the light source life is designed to be 20,000 hours; the luminous flux output of the whole machine can reach more than 50,000lm; good heat dissipation design supplemented by intelligent Fan control technology, the lower the ambient temperature, the lower the noise; the cooling system with patented technology, continuous full power use at room temperature without power reduction. The built-in second-generation color standard ensures that the color of the whole lamp is consistent with that of gas discharge light source lamps. 2 color wheels with 6 colors + white light respectively, CMY stepless color mixing, CTO color temperature linear adjustment, a full-range cutting system that can rotate ±90 degrees. The product is suitable for high-end places such as TV stations, theaters, concerts, large-scale evening parties, electronic music festivals, auto shows, etc., especially suitable for 4K high-definition studios and places with high noise requirements such as theaters and concert halls.
TECHNICAL SPECIFICATION
OPTICAL SYSTEM
  • Light Source: 1500W  (customization)
  • Life Span:>20000h

  • Zoom Range:7° - 70°

  • CRI: Ra>90,R9>70,TLCI>95

  • Light Source: 1500W  (customization)
  • Life Span:>20000h

  • Zoom Range:7° - 70°

  • CRI: Ra>90,R9>70,TLCI>95

COLOR SYSTEM
  • CMY infinite color mixing

  • CTO linear adjustment (2700K- 6200K)

  • 2 color wheels, each with 6 color filters+white

  • CMY infinite color mixing

  • CTO linear adjustment (2700K- 6200K)

  • 2 color wheels, each with 6 color filters+white

GOBO SYSTEM
  • 1 set of full directional framing system, support ±90° rotation
  • 1 set of full directional framing system, support ±90° rotation
EFFECTS
  • Electric dimmer, 0-100% linear dimmer

  • Electric strobe frequency: Quick strobe, multiple strobe effects (pulse/asynchronous/ synchronous/slow- medium-fast at random)

  • Electric dimmer, 0-100% linear dimmer

  • Electric strobe frequency: Quick strobe, multiple strobe effects (pulse/asynchronous/ synchronous/slow- medium-fast at random)

MOVEMENT PARAMETER
  • Pan 540°,Tilt 270°
  • Pan and tilt use non-contact magnetic rotary encoder positioning reset system with self error correction mechanism

  • Pan 540°,Tilt 270°
  • Pan and tilt use non-contact magnetic rotary encoder positioning reset system with self error correction mechanism

CONTROL CHANNELS
  • Control channel: 16 bit
  • Protocol: DMX512/RDM

  • Menu display: 3.5 inches LCD black&white display screen, Chinese and English language can be switched freely; menu available to display

  • Control channel: 16 bit
  • Protocol: DMX512/RDM

  • Menu display: 3.5 inches LCD black&white display screen, Chinese and English language can be switched freely; menu available to display

ELECTRONIC CONTROL TECHNOLOGY
  • Built-in self-rechargeable battery, edit menu when there is no power
  • When the light is turned off, the power is automatically reduced, saving energy and environmental protection

  • Intelligent control of the fans

  • Heat dissipation system: Intelligent heat dissipation: The advanced and scientific thermal system design keeps the internal systems of the device within a reasonable working temperature range, which can extend the service life of the device and improve the reliability of the device

  • Electronic sensor detection

  • DMX channel level monitoring

  • The XY axis is driven by a three-phase motor, with smooth low-speed scanning and low noise

  • Query device information via display screen (power-on time, bulb usage time, fault information, etc.)

  • Electronic zoom function

  • RDM data bidirectional transmission function

  • The software upgrade device can be connected to the DMX port of the device to upgrade the software

  • Input signal isolation protection function

  • FINE ART CLOUD system

  • Built-in self-rechargeable battery, edit menu when there is no power
  • When the light is turned off, the power is automatically reduced, saving energy and environmental protection

  • Intelligent control of the fans

  • Heat dissipation system: Intelligent heat dissipation: The advanced and scientific thermal system design keeps the internal systems of the device within a reasonable working temperature range, which can extend the service life of the device and improve the reliability of the device

  • Electronic sensor detection

  • DMX channel level monitoring

  • The XY axis is driven by a three-phase motor, with smooth low-speed scanning and low noise

  • Query device information via display screen (power-on time, bulb usage time, fault information, etc.)

  • Electronic zoom function

  • RDM data bidirectional transmission function

  • The software upgrade device can be connected to the DMX port of the device to upgrade the software

  • Input signal isolation protection function

  • FINE ART CLOUD system

POWER SUPPLY
  • Input voltage: AC100-240V, 50/60Hz

  • Input power: 1650W

  • PF≥0.98

  • Power socket: PowerCON TRUE1 input

  • Input voltage: AC100-240V, 50/60Hz

  • Input power: 1650W

  • PF≥0.98

  • Power socket: PowerCON TRUE1 input

DIMENSION AND WEIGHT
  • Fixture Dimension: 485 x 344 x 837mm

  • Package Dimension: 715 x 605 x 877mm

  • Net Weight: 48.5 kg (fixture)

  • Gross Weight: 93 kg (flight case)

  • Fixture Dimension: 485 x 344 x 837mm

  • Package Dimension: 715 x 605 x 877mm

  • Net Weight: 48.5 kg (fixture)

  • Gross Weight: 93 kg (flight case)

PACKAGE
  • 1 set / flight case
  • 1 set / carton box

  • 1 set / flight case
  • 1 set / carton box

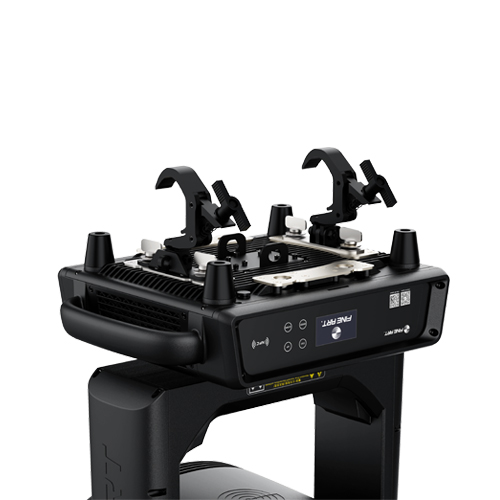

INSTALL
  • Horizontal or vertical installation
  • 2 integrated folding light hooks for φ40~φ60 mm Truss

  • Safety rope connection hole

  • Horizontal or vertical installation
  • 2 integrated folding light hooks for φ40~φ60 mm Truss

  • Safety rope connection hole

IP RATE
  • IP 66
  • IP 66

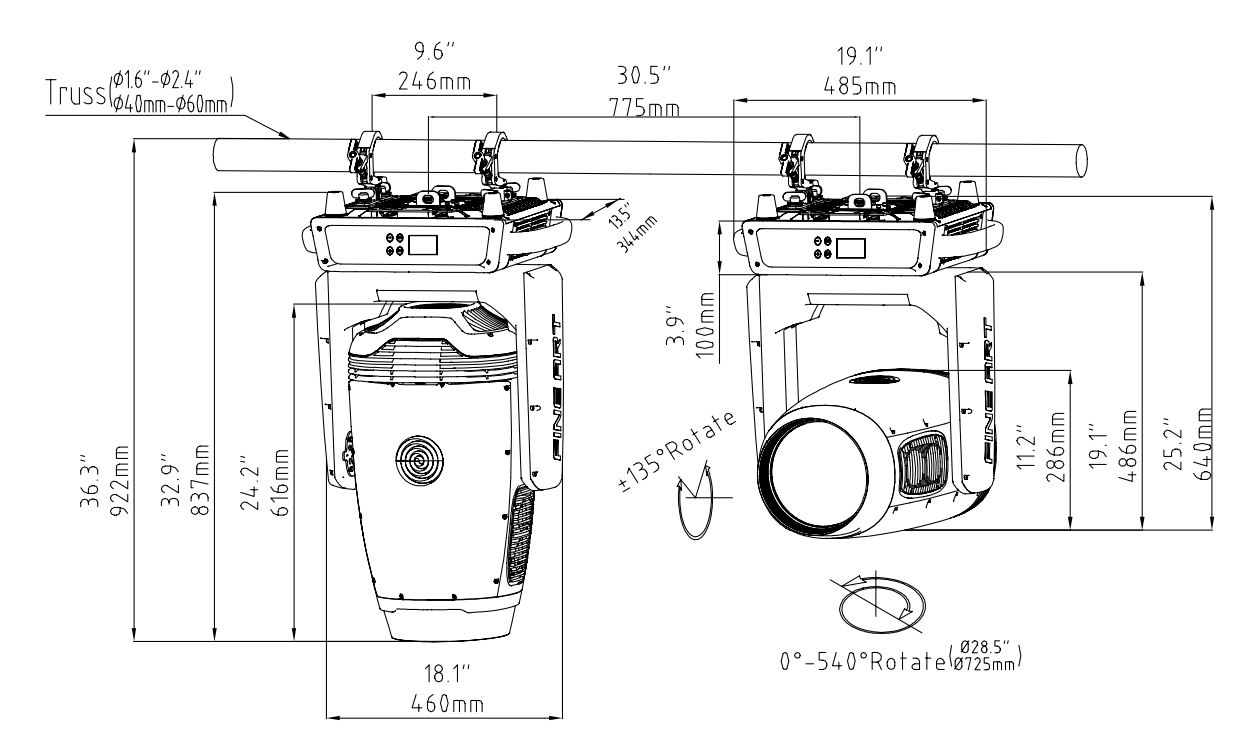

DIMENSIONS
990395210205 FINE 1700L WASH PERF IP Dimension drawing20250207_00(1)

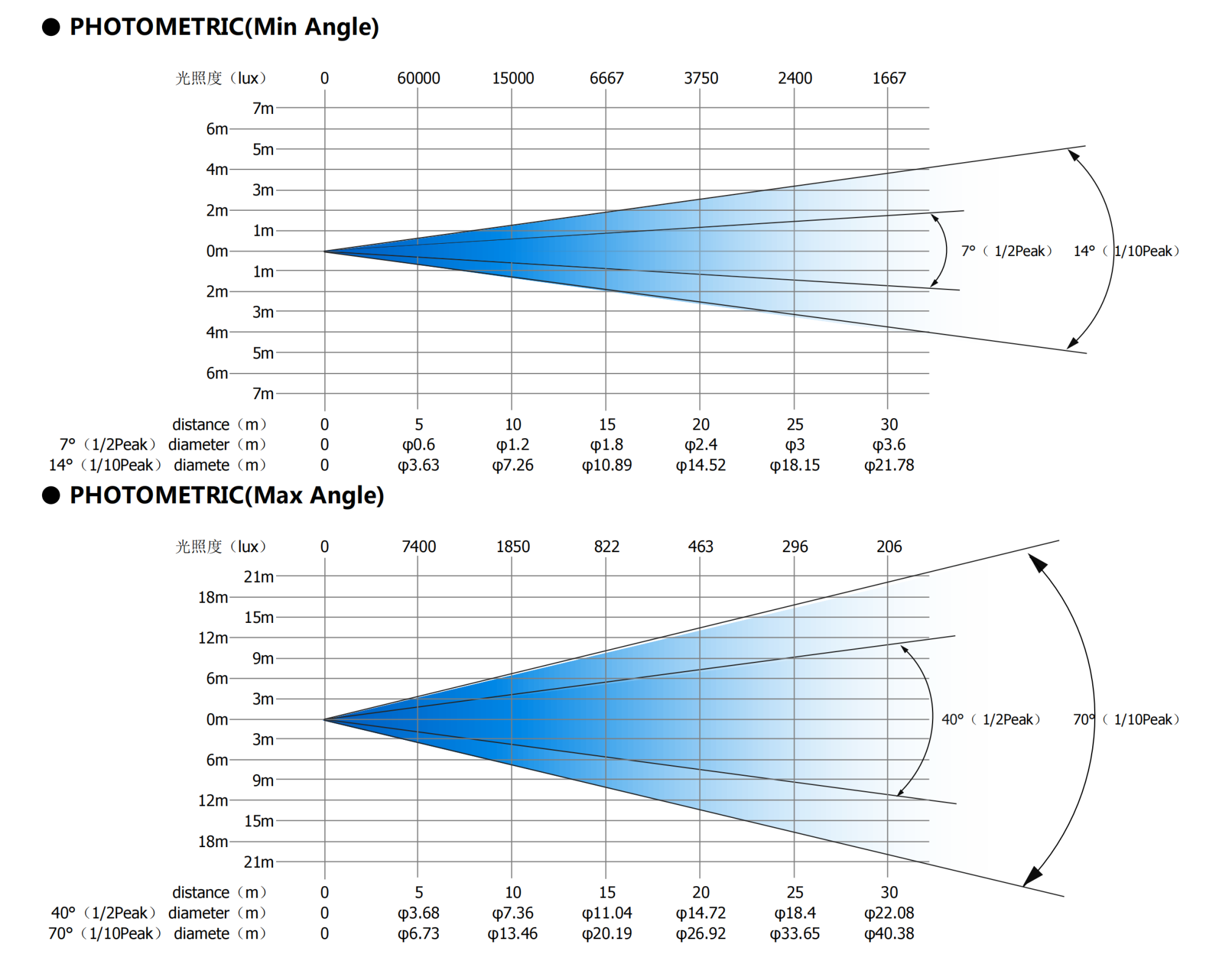

PHOTOMETRICS

FINE 1700L WASH PERF IP照度表(英文版)-20250115_00(1)

GOBOS & COLORS
Color Wheel 1
01FINE 1700L WASH PERF IP 红
02FINE 1700L WASH PERF IP 绿
03FINE 1700L WASH PERF IP 蓝
04FINE 1700L WASH PERF IP 橙
05FINE 1700L WASH PERF IP 粉
06FINE 1700L WASH PERF IP 墨绿
Color Wheel 2
01 FINE 1700L WASH PERF IP浅绿
02 FINE 1700L WASH PERF IP黄色
03 FINE 1700L WASH PERF IP天蓝
04 FINE 1700L WASH PERF IP紫色
05 FINE 1700L WASH PERF IP橙黄
06 FINE 1700L WASH PERF IP浅紫
