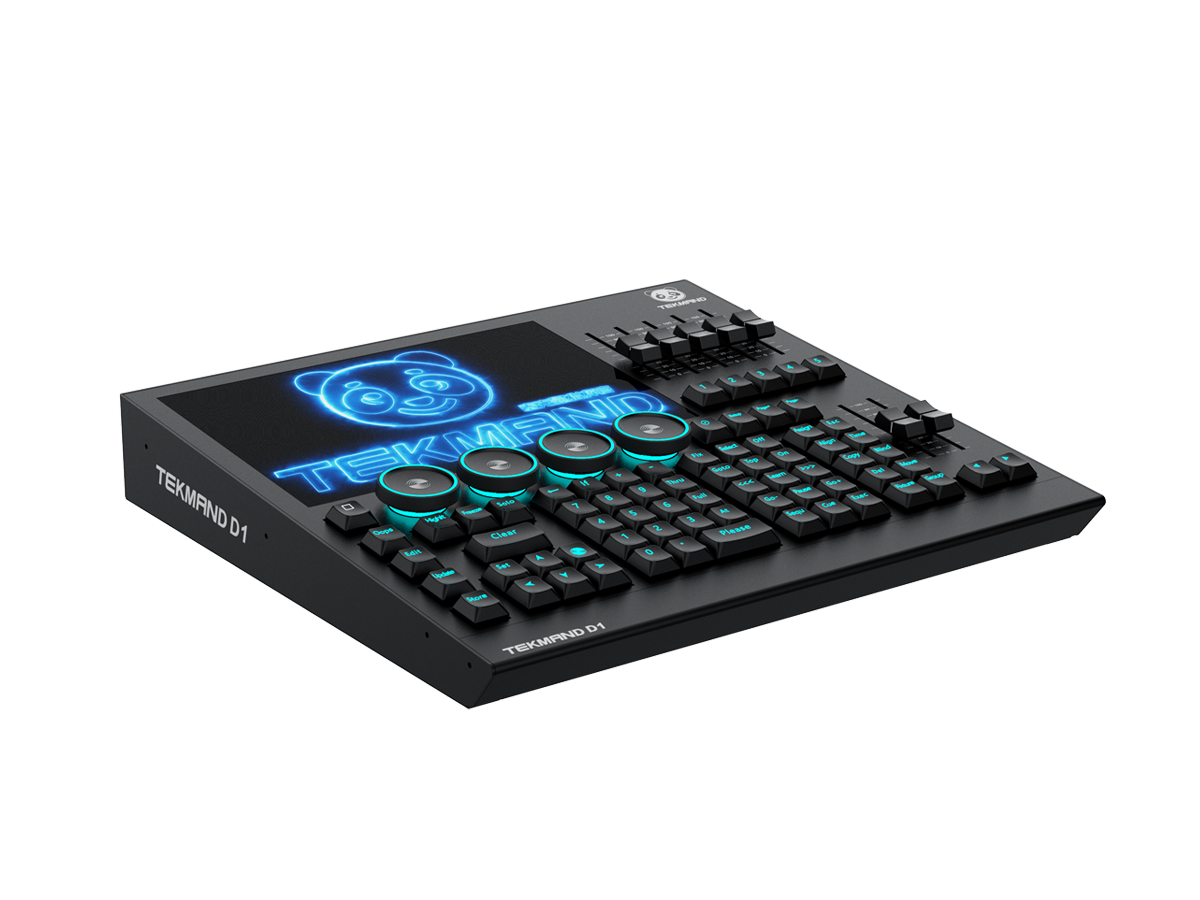

TEKMAND D1

OVERVIEW

TEKMAND D1 is a digital dimming console, with completely independent intellectual property rights. Featuring a highly integrated hardware architecture, it pioneers a one-piece triple-screen design, crafted under the design philosophy of being extremely lightweight, minimalist, and adhering to the highest standards of craftsmanship. Its high-performance core can handle 6144 parameters, making it fully equipped to meet the demands of various performance scenarios.

TECHNICAL SPECIFICATION

Features

Control for up to 260000+parameters connection with DPU
4096 Parameters
Built in touch screen-10.1 inches
4 encoders with RGB backlit
5 Executor faders
5 Executor keys
2 A/B faders
Individually RGB backlit and dimmable keys
4 x DM512ln/Out(5pin/3pinⅪR female)
1 x etherCON/RJ45(10/100/1000M)
1 x USB(type A)
1 x HDMI
1 x MIDI In(5pin DIN female)
1 x LTC In(3pinⅪR female)
1 x Audio Out(3.5mm)
1 x LED desk light(4pin XLR female

Control for up to 260000+parameters connection with DPU
4096 Parameters
Built in touch screen-10.1 inches
4 encoders with RGB backlit
5 Executor faders
5 Executor keys
2 A/B faders
Individually RGB backlit and dimmable keys
4 x DM512ln/Out(5pin/3pinⅪR female)
1 x etherCON/RJ45(10/100/1000M)
1 x USB(type A)
1 x HDMI
1 x MIDI In(5pin DIN female)
1 x LTC In(3pinⅪR female)
1 x Audio Out(3.5mm)
1 x LED desk light(4pin XLR female

Specifications

Power Supply: 100-240V,50/60Hz
Maximum Power:30W
Product Dimension:356x344x56mm
Package: 1pc/Carton
Net Weight: 3.15kg
IP Rate: IP20
Work Temperature: -10°C ~40°C

Power Supply: 100-240V,50/60Hz
Maximum Power:30W
Product Dimension:356x344x56mm
Package: 1pc/Carton
Net Weight: 3.15kg
IP Rate: IP20
Work Temperature: -10°C ~40°C
