Light Source: 600W LED module
Life Span:＞20000h

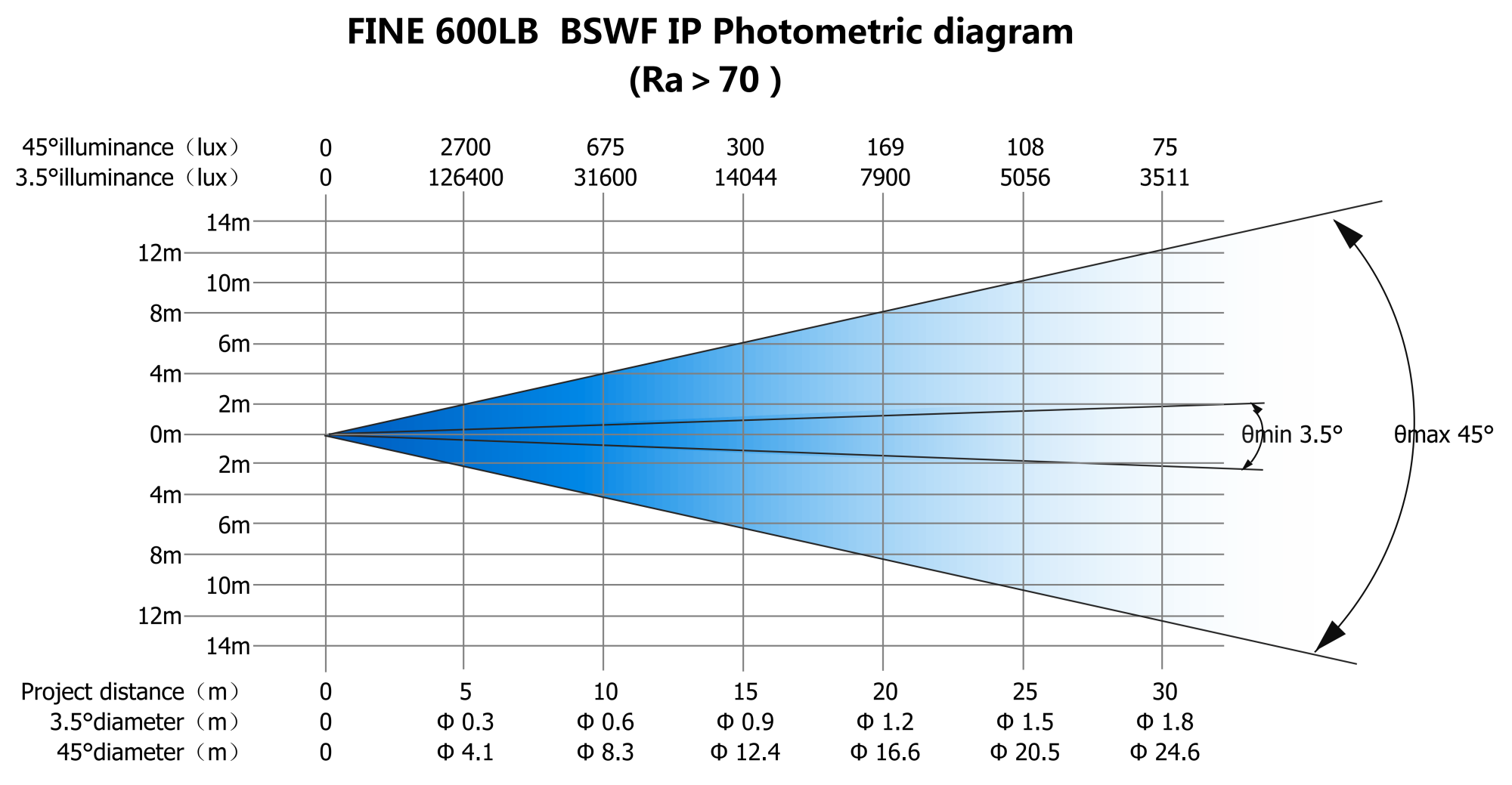

Zoom Range: 3.5° - 45°
CRI: Ra>70
CTO: 6700K±300K
Light Source: 600W LED module
Life Span:＞20000h
Zoom Range: 3.5° - 45°
CRI: Ra>70
CTO: 6700K±300K
- CMY infinite color mixing
CTO linear adjustment(2700k- 6200k)
1 color wheel with 7 color filters+white light
- CMY infinite color mixing
CTO linear adjustment(2700k- 6200k)
1 color wheel with 7 color filters+white light
1 rotating gobo wheel with 8 gobos+open
1 fixed gobo wheel with 9 gobos+open
1 animation wheel
1 rotating gobo wheel with 8 gobos+open
1 fixed gobo wheel with 9 gobos+open
1 animation wheel
- 1 set of full directional framing system, support ± 90° rotation
- 1 set of full directional framing system, support ± 90° rotation
Dimming: 0~100% linear dimming
Soft frost light: 2pcs independent frost, 0~100% soft light effect
Strobe: Electric fast strobe frequency, multiple strobe effects (pulse/asynchronous/synchronous/slow- medium-fast at random)
Prism: one 4-facet rotating prism + one 4-facet rotating gradient prism, can be superimposed, can be bidirectional rotation
Dimming: 0~100% linear dimming
Soft frost light: 2pcs independent frost, 0~100% soft light effect
Strobe: Electric fast strobe frequency, multiple strobe effects (pulse/asynchronous/synchronous/slow- medium-fast at random)
Prism: one 4-facet rotating prism + one 4-facet rotating gradient prism, can be superimposed, can be bidirectional rotation
- Pan 540°, Tilt 250°, 16Bit control
With magnetic encoder positioning system
- Pan 540°, Tilt 250°, 16Bit control
With magnetic encoder positioning system
Protocol: DMX512/RDM
Menu display: 2.0 inch black & white LCD display screen, Chinese and English language can be switched freely; 180° reverse display; touch button operation mode
Protocol: DMX512/RDM
Menu display: 2.0 inch black & white LCD display screen, Chinese and English language can be switched freely; 180° reverse display; touch button operation mode
Built-in self-recharging battery, operate menu without power
Auto power reduction when light turn off to save energy and environmental protection
Intelligent control of fans
Heat dissipation system: Intelligent heat dissipation: The advanced thermal system keeps the internal excellent operating temperature range, which can extend the life span and reliability
Electronic sensing detection
DMX channel level monitoring
The XY axis is driven by a three-phase motor, with smooth low-speed scanning and low noise
Query information (power-on time, Lamp usage time, Error information, etc.) through the display screen
Electronic zoom function
With RDM data bidirectional transmission function
DMX address code, turn on and off , reset, and modes conversion from the console
Software upgrade by the DMX port
Input signal isolation protection function
FINE ART cloud system
Built-in self-recharging battery, operate menu without power
Auto power reduction when light turn off to save energy and environmental protection
Intelligent control of fans
Heat dissipation system: Intelligent heat dissipation: The advanced thermal system keeps the internal excellent operating temperature range, which can extend the life span and reliability
Electronic sensing detection
DMX channel level monitoring
The XY axis is driven by a three-phase motor, with smooth low-speed scanning and low noise
Query information (power-on time, Lamp usage time, Error information, etc.) through the display screen
Electronic zoom function
With RDM data bidirectional transmission function
DMX address code, turn on and off , reset, and modes conversion from the console
Software upgrade by the DMX port
Input signal isolation protection function
FINE ART cloud system
Input voltage: 100-240V~,50/60Hz
Rated power: 900W
PF≥0.98
Power supply: PowerCON TRUE1 input
DMX: Core cannon socket input/output
Input voltage: 100-240V~,50/60Hz
Rated power: 900W
PF≥0.98
Power supply: PowerCON TRUE1 input
DMX: Core cannon socket input/output
Working temperature: -10°C ~40°C
Working temperature: -10°C ~40°C
Fixture Dimension: 397 x 272 x 703mm
Package Dimension: 840mm x 522mm x 950mm(flight case)
Net Weight: 34.5 kg (79.4lbs)
Gross Weight: 118 kg (259.6lbs)(flight case)
Fixture Dimension: 397 x 272 x 703mm
Package Dimension: 840mm x 522mm x 950mm(flight case)
Net Weight: 34.5 kg (79.4lbs)
Gross Weight: 118 kg (259.6lbs)(flight case)

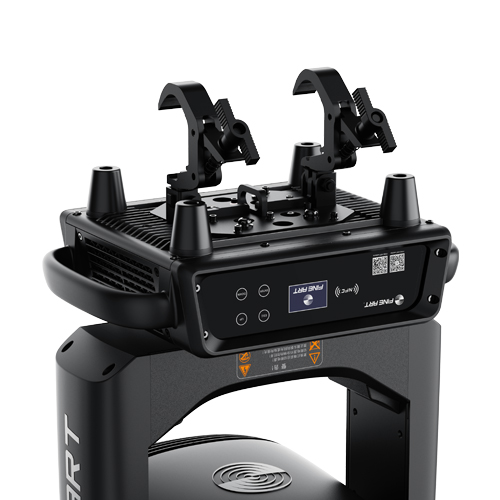

Horizontal or vertical installation, can be hung on the side
2 integrated light hooks / separated light hooks for Φ40-Φ60mm Truss
Safety wire connecting hole
Horizontal or vertical installation, can be hung on the side
2 integrated light hooks / separated light hooks for Φ40-Φ60mm Truss
Safety wire connecting hole
2 sets / flight case
1 set / carton case
2 sets / flight case
1 set / carton case
IP 66
IP 66
