TEKMAND D2

OVERVIEW

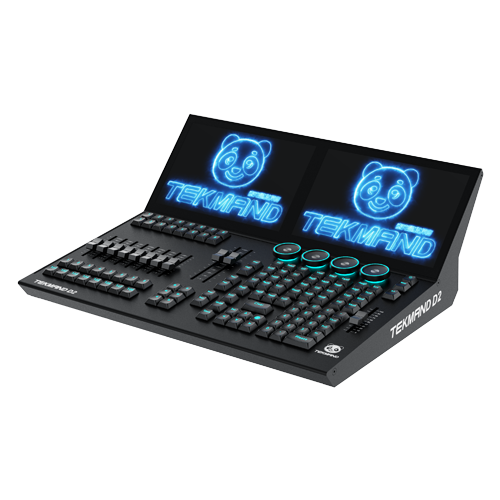

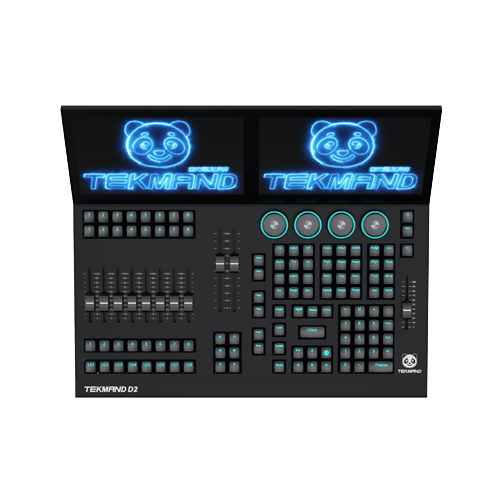

TEKMAND D2 is a newly designed and smaller console with two 10.1-inch dual touch screens for a simple interface, easy operation, light weight, and dexterity. Integrated design of hardware configuration, multi-point capacitive touch screen and two-way combination of key functions to control the interface, with simple and convenient operation to achieve complex and diverse control, 2D layout diagram can be more intuitive and rapid control of the entire lighting effect programming input and final playback, simple 3D lighting renderings can be seen through the built-in simulation stage module. Support offline pre-programming, save a lot of time, improve work efficiency. It can meet the needs of various medium and small performances and activities

TECHNICAL SPECIFICATION

Features

Control for up to 260000+ parameters connection with DPU
6144 Parameters
Diptych – 2 multi-touch screens
4 encoders with RGB backlight
1 Grand fader
8 Executor faders
8 Executor keys
2 A/B faders(long)
Individually RGB backlit and dimmable keys

Multiple operating languages (Chinese, English, Japanese, Korean, French, Russian…)
Multiple ime (Chinese, English, Korean, Scratch…)
Multiple Themes, more intuitive user interface
Multiple Consoles connective and backup
TEKMAND Realistic 3D stage
TEKMAND media player with Timecode synchronization
Support CITP protocol
Support RDM-Remote Device Management
Support PSN protocol
Support protocols:TEKMAND-Net,ArtNet,sACN,ShowNet

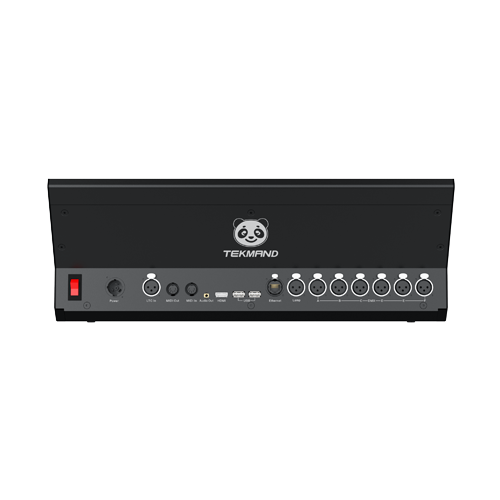

6 x DMX512 In/Out(5pin/3pin XLR female)
1 x etherCON/RJ45(10/100/1000M)
2 x USB(type A)
1 x MIDI In(5pin DIN female)
1 x MIDI Out(5pin DIN female)
1 x LTC In(3pin XLR female)
1 x Audio Out(3.5mm)
1 x LED desk light(4pin XLR female)

Control for up to 260000+ parameters connection with DPU
6144 Parameters
Diptych – 2 multi-touch screens
4 encoders with RGB backlight
1 Grand fader
8 Executor faders
8 Executor keys
2 A/B faders(long)
Individually RGB backlit and dimmable keys

Multiple operating languages (Chinese, English, Japanese, Korean, French, Russian…)
Multiple ime (Chinese, English, Korean, Scratch…)
Multiple Themes, more intuitive user interface
Multiple Consoles connective and backup
TEKMAND Realistic 3D stage
TEKMAND media player with Timecode synchronization
Support CITP protocol
Support RDM-Remote Device Management
Support PSN protocol
Support protocols:TEKMAND-Net,ArtNet,sACN,ShowNet

6 x DMX512 In/Out(5pin/3pin XLR female)
1 x etherCON/RJ45(10/100/1000M)
2 x USB(type A)
1 x MIDI In(5pin DIN female)
1 x MIDI Out(5pin DIN female)
1 x LTC In(3pin XLR female)
1 x Audio Out(3.5mm)
1 x LED desk light(4pin XLR female)

Specifications

Power Supply: 100-240V, 50/60Hz
Maximum Power: 12V/3.0A=36W
Product Dimension: 480.4×428.54×183.36mm
Package: 1pc / Carton
Net Weight: 6.2kg
IP Rate: IP20
Work Temperature: -10℃ ~ 40℃

Power Supply: 100-240V, 50/60Hz
Maximum Power: 12V/3.0A=36W
Product Dimension: 480.4×428.54×183.36mm
Package: 1pc / Carton
Net Weight: 6.2kg
IP Rate: IP20
Work Temperature: -10℃ ~ 40℃

Accessories

Dust Cover
LED Lights
User Manual

Dust Cover
LED Lights
User Manual
