Light Source: 7 x 150W RGBL LEDs
Lifetime: 20,000 h
Color Rendering: Ra: 65

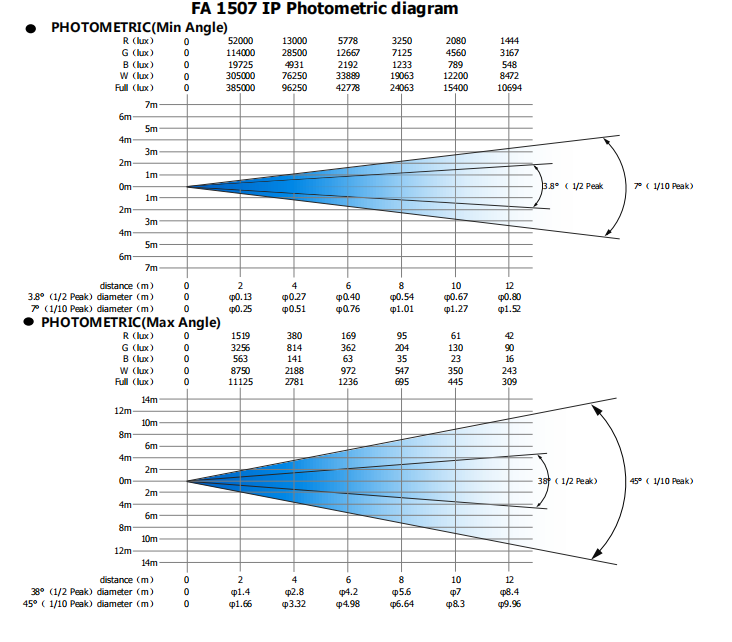

Beam Angle: 3.8°-45°
Light Source: 7 x 150W RGBL LEDs
Lifetime: 20,000 h
Color Rendering: Ra: 65
Beam Angle: 3.8°-45°
Linear Color Temperature Adjustment Range: 2500K-8000K
Linear Color Temperature Adjustment Range: 2500K-8000K
Dimming: 0–100% linear dimming, 65,536-step precision
Strobe: 1-25 Hz, with multiple strobe effect options
181 Color Macros, 41 Effect Macros
Dimming: 0–100% linear dimming, 65,536-step precision
Strobe: 1-25 Hz, with multiple strobe effect options
181 Color Macros, 41 Effect Macros
Pan: 540°, accuracy 2.11°/step, fine-adjust accuracy 0.008°
Tilt: 240°, accuracy 1.05°/step, fine-adjust accuracy 0.004°
Pan: 540°, accuracy 2.11°/step, fine-adjust accuracy 0.008°
Tilt: 240°, accuracy 1.05°/step, fine-adjust accuracy 0.004°
Control Channels: 20-Stnd / 41-RGB / 48-RGBL / 32-Shape
Protocols: DMX512 / RDM, Art-Net
Display: 2.0-inch B&W LCD screen; Chinese/English language selectable; 180° invertible text; button operation with quick-return key.
Control Channels: 20-Stnd / 41-RGB / 48-RGBL / 32-Shape
Protocols: DMX512 / RDM, Art-Net
Display: 2.0-inch B&W LCD screen; Chinese/English language selectable; 180° invertible text; button operation with quick-return key.
Built-in rechargeable battery for menu operation when power is off
Power-saving mode when shutter is closed
Intelligent fan control
Cooling: forced air; advanced thermal design maintains internal components within an optimal temperature range, extending lifespan and improving reliability
Electronic sensor monitoring
DMX channel level monitoring
Pan/tilt driven by three-phase motors for smooth low-speed movement and low noise
On-screen display of fixture info, lamp usage time, and fault messages
Electronic focusing
RDM bidirectional communication
Remote console control: DMX address change, lamp on/off, reset, mode switching
Software upgrade via DMX port
Input signal isolation protection
Caiyi Cloud function (optional)
Built-in rechargeable battery for menu operation when power is off
Power-saving mode when shutter is closed
Intelligent fan control
Cooling: forced air; advanced thermal design maintains internal components within an optimal temperature range, extending lifespan and improving reliability
Electronic sensor monitoring
DMX channel level monitoring
Pan/tilt driven by three-phase motors for smooth low-speed movement and low noise
On-screen display of fixture info, lamp usage time, and fault messages
Electronic focusing
RDM bidirectional communication
Remote console control: DMX address change, lamp on/off, reset, mode switching
Software upgrade via DMX port
Input signal isolation protection
Caiyi Cloud function (optional)
Input Voltage Range: AC 100–240 V, 50/60 Hz
Max. Power Consumption: 1050 W
Power Factor: PF ≥ 0.98
Power Connector: PowerCON TRUE1 input
Signal In/Out: 3-pin XLR in/out
Input Voltage Range: AC 100–240 V, 50/60 Hz
Max. Power Consumption: 1050 W
Power Factor: PF ≥ 0.98
Power Connector: PowerCON TRUE1 input
Signal In/Out: 3-pin XLR in/out
Temperature: -10℃~40℃
Temperature: -10℃~40℃

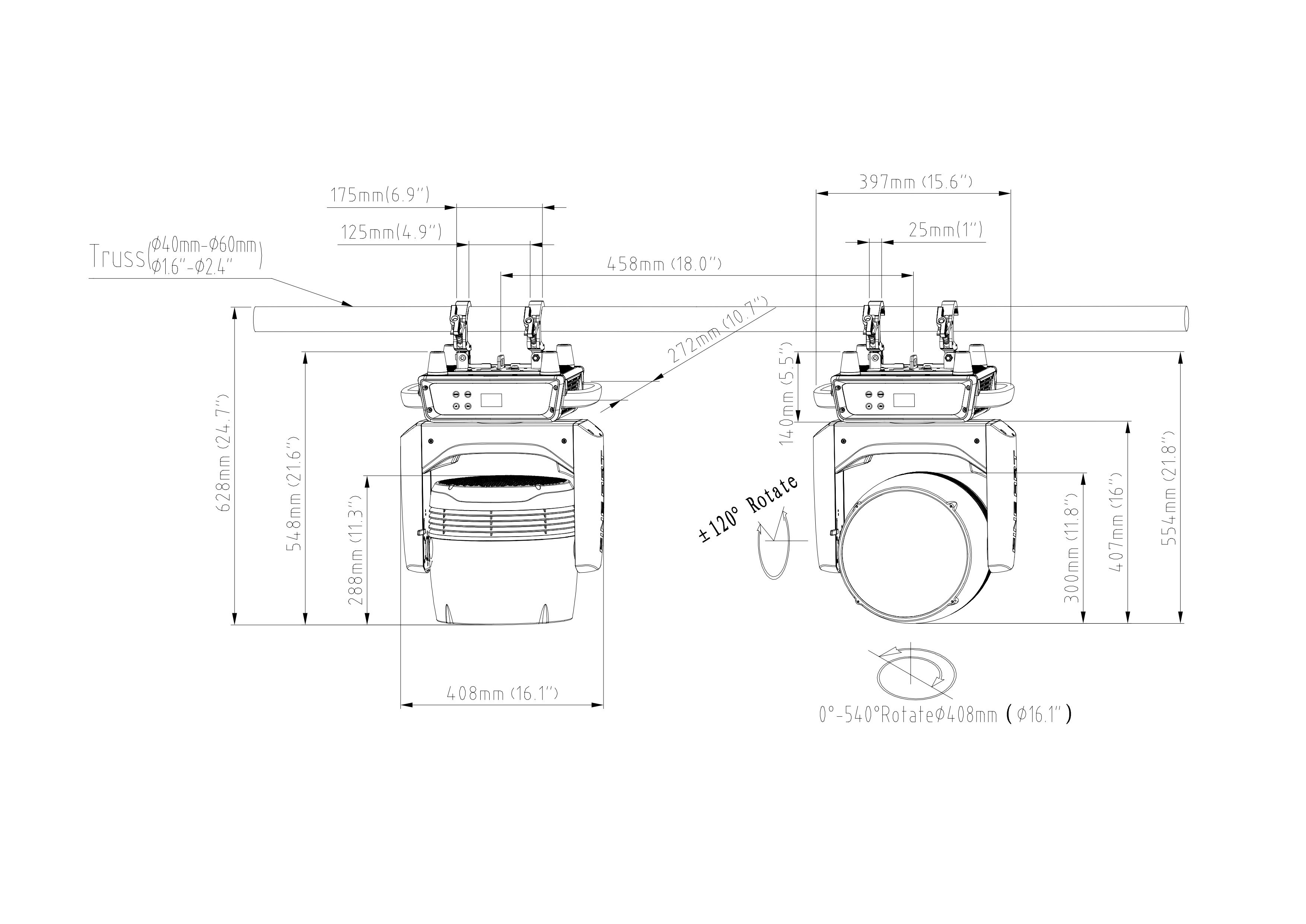

Product Dimensions:408 X 300 X 548 mm
Packaging Dimensions: 845 × 527 × 815 mm
Net Weight: 26 kg
Gross Weight: 95 kg
Product Dimensions:408 X 300 X 548 mm
Packaging Dimensions: 845 × 527 × 815 mm
Net Weight: 26 kg
Gross Weight: 95 kg
2 set / flight case
1 set / carton
2 set / flight case
1 set / carton
Horizontal, vertical, or side mounting

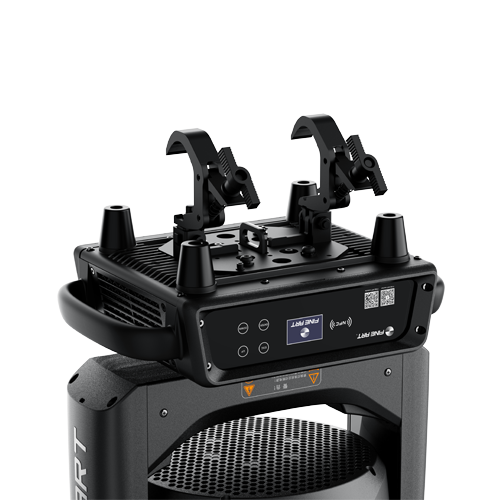

2 folding hook brackets for Φ30–Φ60 mm truss
Safety cable eyelet
Horizontal, vertical, or side mounting
2 folding hook brackets for Φ30–Φ60 mm truss
Safety cable eyelet
IP 66
IP 66

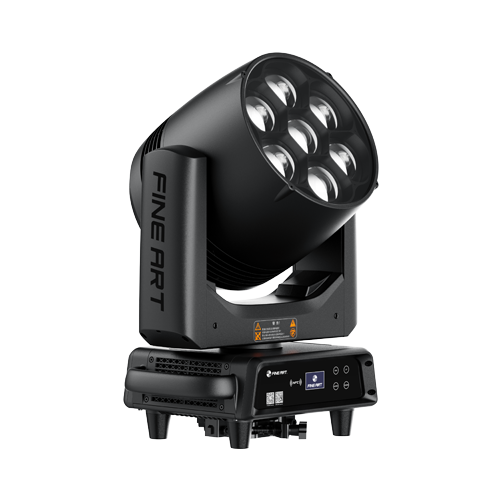

FA 1507 IP
